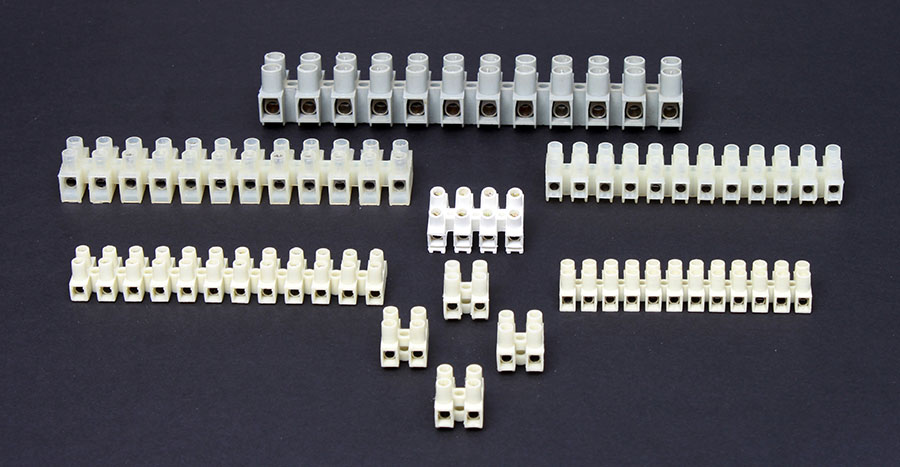

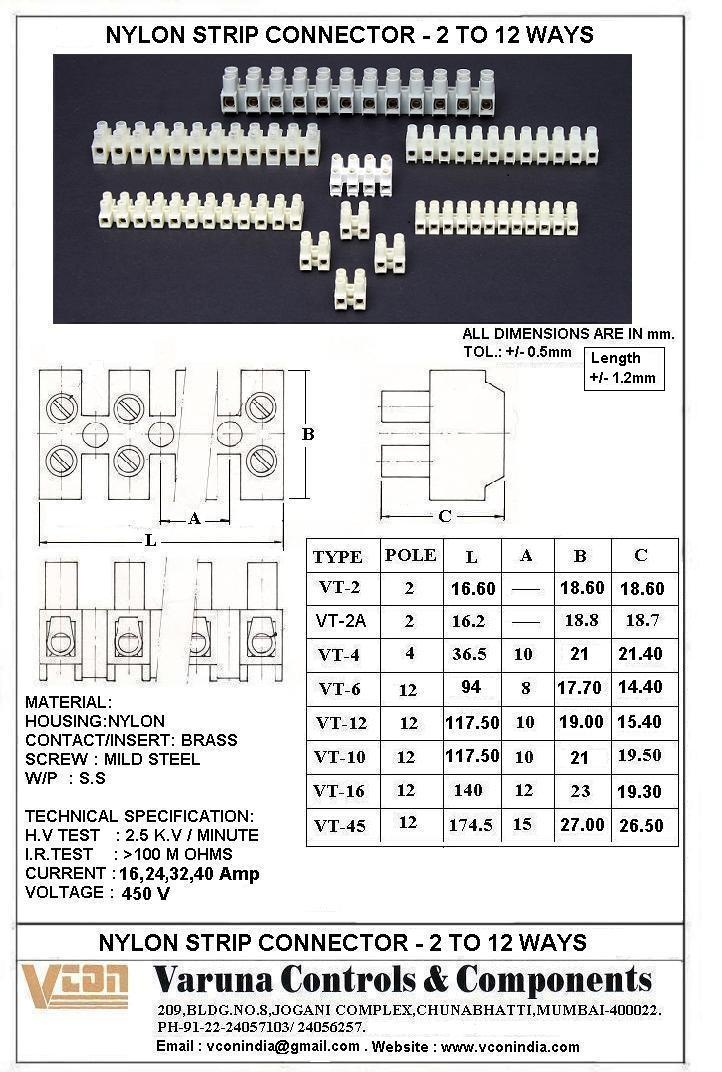

| TYPE | POLE | L | A | B | C | Current Rating Amps @ 600 V |
| VT- 2 | 2 | 16.6 | ______ | 18.6 | 18.6 | |
| VT-2A | 2 | 16.2 | ______ | 18.8 | 18.7 | |
| VT- 4 | 4 | 36.5 | 10 | 21 | 21.4 | |
| VT-6 | 12 | 94 | 8 | 17.7 | 14.4 | |
| VT- 12 | 12 | 117.5 | 10 | 19 | 15.4 | |
| VT- 10 | 12 | 117.5 | 10 | 21 | 19.5 | |
| VT- 16 | 12 | 140 | 12 | 23 | 19.3 | |
| VT- 45 | 12 | 174.5 | 15 | 27 | 26.5 | |
ENCLOSURE DIN RAIL/ SURFACE MOUNTING : EN-2/ 12/ 6 TERMINALS
| Technical Specification | |
| Size | 70 x 60 x 111 mm |
| Suitable for DIN En 35 x 7.5 mm | |
| Material Specification | |
| Body | ABC |
| Conductor | Brass Tin Plated |
| Screw | Brass Nickle Plated or M.S.Zink Plated |
| Binder Washer | Brass Nickle Plated or M.S.Zink Plated |
| Colour | Black Top & Grey Housing |
| Special Colour can be given for Bulk Quantity | |
ENCLOSURE DIN RAIL/ SURFACE MOUNTING : EN-7 (20 TERMINALS)
| Technical Specification | |
| Size | 70 x 106 x 112 mm |
| Suitable for DIN En 35 x 7.5 mm | |
| Material Specification | |
| Body | ABS |
| Conductor | Brass Tin Plated |
| Screw & Nut | Brass Nickel Plated or M.S. Zink Plated |
| Binder Washer | - |
| Colour | Black Top & Grey Housing |
| Special Colour can be given for Bulk Quantity | |
ENCLOSURE DIN RAIL/ SURFACE MOUNTING : EN-8 (32 TERMINALS)
| Technical Specification | |
| Size | 70 x 150 x 112 mm |
| Suitable for DIN En 35 x 7.5 mm | |
| Material Specification | |
| Body | ABC |
| Conductor | Brass Tin Plated |
| Screw & Nut | Brass Nickel Plated or M.S. Zink Plated |
| Binder Washer | - |
| Colour | Black Top & Grey Housing |
| Special Colour can be given for Bulk Quantity | |
IP- 65/68 JUNCTION BOX TYPE JB- 01
| Technical Specification | |
| Protection Spec | IP 65/68 |
| Size | 200 x 120 x 75 |
| Installation Temp | -5°C To + 80°C |
| Temp Resistance Max | 100°C |
| Material Specification | |
| Body | ABS |
| Rubber Seal | Silicon Sponge |
| Colour | Light Grey |
| Also Availble in Transparent Cover for Bulk Quantity | |
IP- 65/68 JUNCTION BOX TYPE JB- 02
| Technical Specification | |
| Protection Spec | IP 65/68 |
| Size | 250 x 120 x 50 |
| Installation Temp | -5°C To + 80°Cs |
| Temp Resistance Max | 100°C |
| Material Specification | |
| Body | ABS |
| Rubber Seal | Silicon Sponge |
| Colour | Light Grey |
| Also Availble in Transparent Cover for Bulk Quantity | |
RIGID TERMINALS HT- SERIES (2 - 8 WAYS)
| Technical Specification | |
| Current Rating | 30 Amps. 600 V. |
| H > Test | 2 KV for 1 min |
| Insulation | > 100 Mega ohms |
| Material Specification | |
| Body | Bakelite |
| Conductors | Brass Nickle Plated |
| Screw | MS Nickle Plated |
| Brass Screws & Melamine Housing Can be given for Bulk Qty. | |
PLASTIC STRIP CONNECTORS
| Technical Specification | |
| Current Rating | 5, 10, 15 Amps/ 600 V ( 2 to 12 Ways) |
| H ≥ Test | 2 KV for 1 min |
| Insulation | > 100 Mega ohms |
| Material Specification | |
| Body | Plastic |
| Conductor | Brass Nickle Plated |
| Screw | MS duly Nickle Plated/ Zink Plated |
| Brass Screws can be given for Bulk Requirment. | |
CABLE GLANDS
| Technical Specification | |
| Size | Available in PG - 7 To PG - 63 |
| Insulation | Polypropylene (PP) |
| Material Specification | |
| Material | Polyamide, PVC, Nylon |
| Colour | Greay |

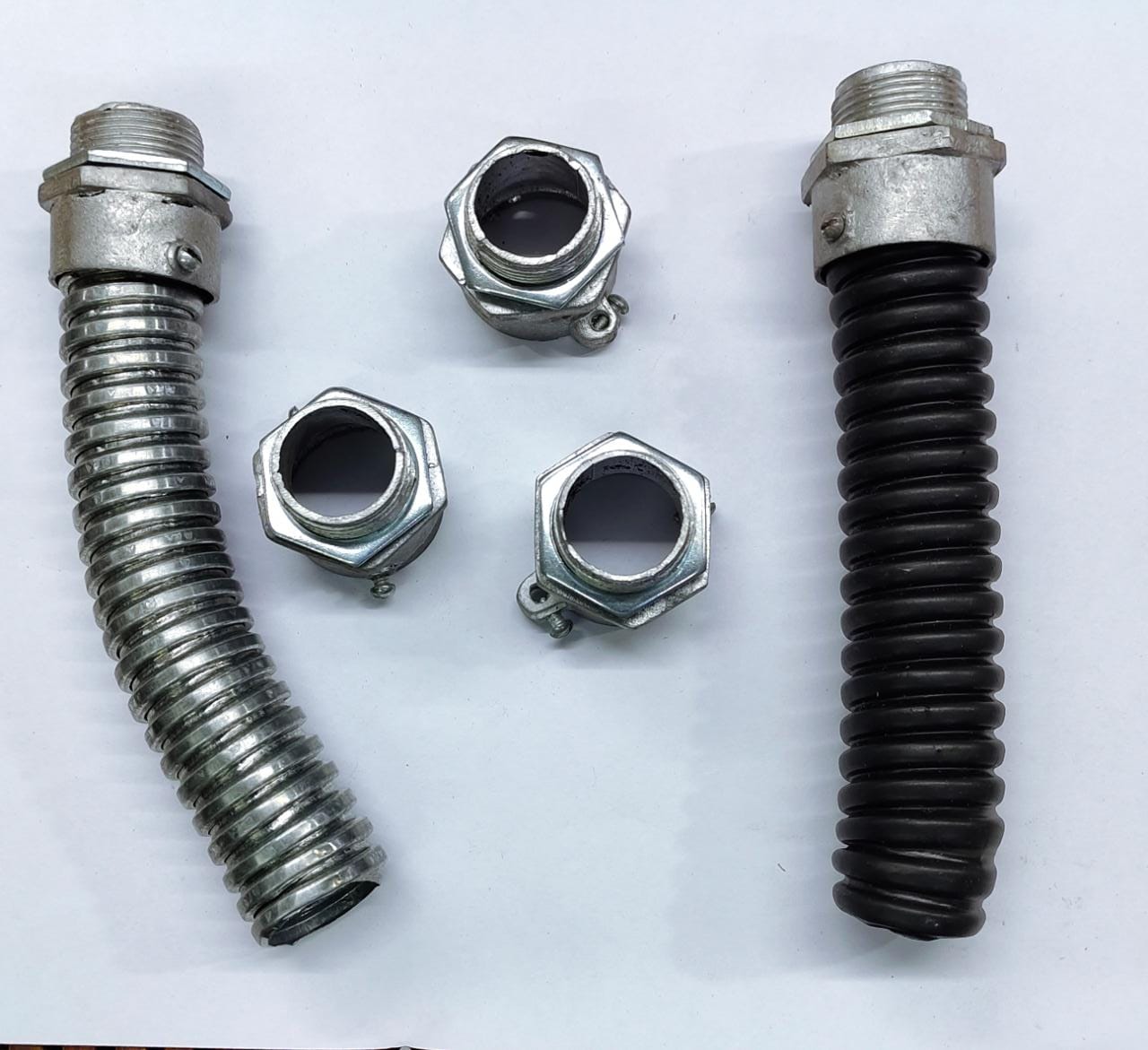

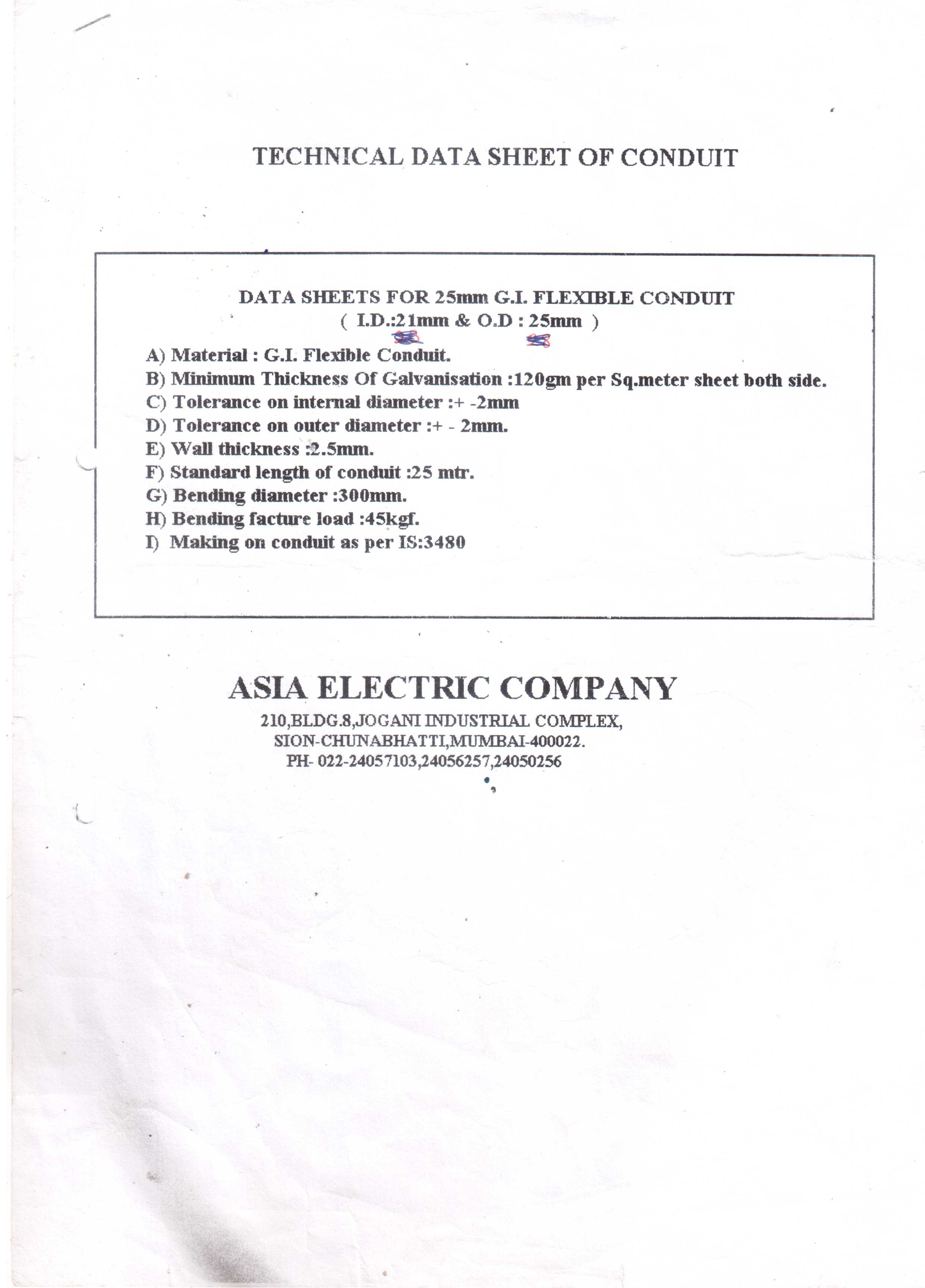

FLEXIBLE GALVANISED CONDUIT AND FLEXIBLE PVC CONDUIT
| Technical Specification | |
| I.D. | 21 mm |
| O.D. | 25 mm |
| Material | G.I.Flexible Conduit |

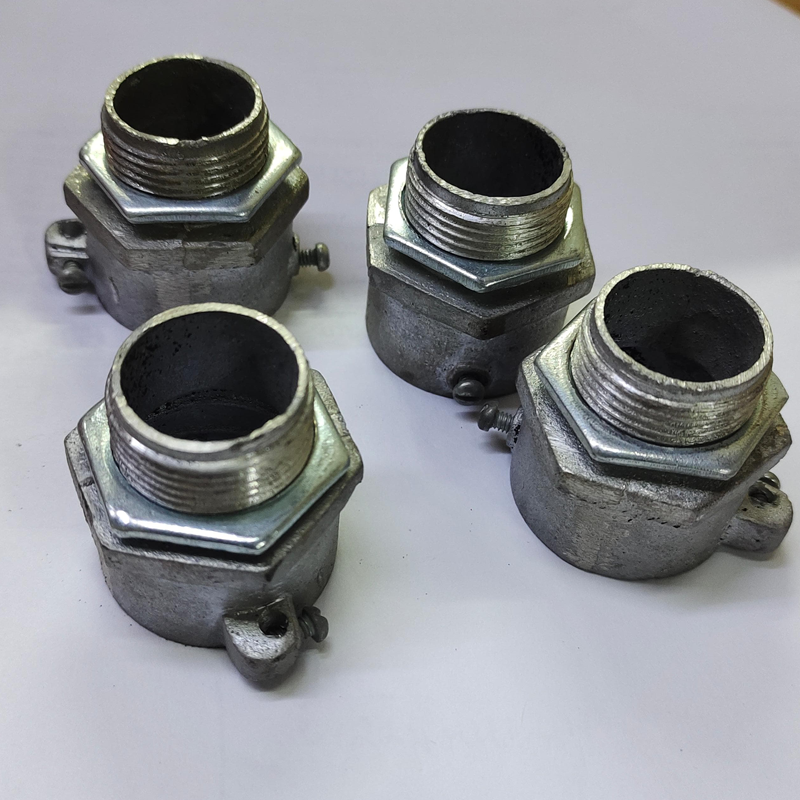

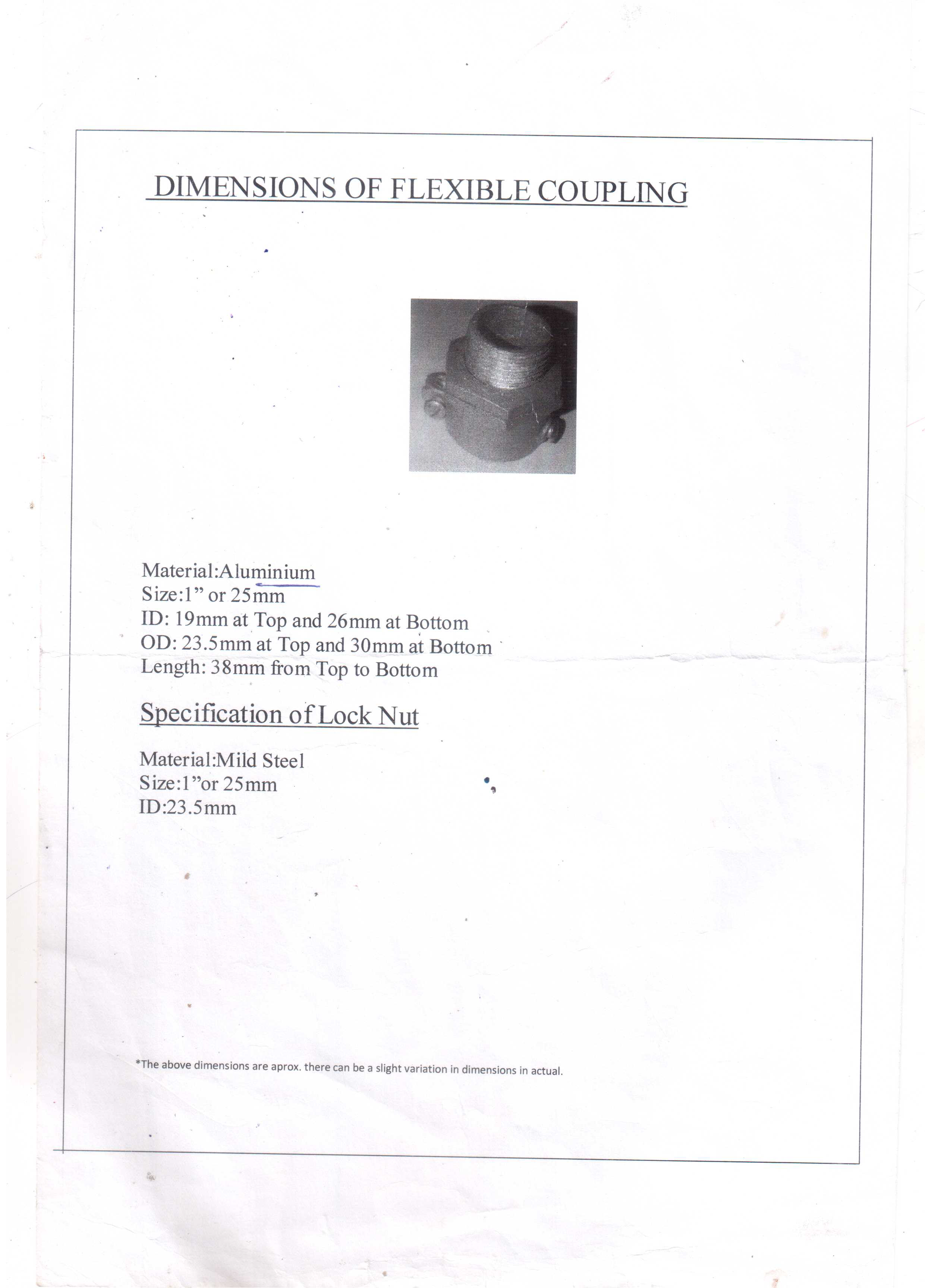

FLEXIBLE COUPLING
| Technical Specification | |
| ID | 19 at Top and 26 mm at Bottom |
| OD | 23.5 mm at Top and 30 mm at Bottom |
| Material | Aluminium |
